Pump size：DN50 Flange，Max flow：175000l/h

standard：4.0kw Variable frequency motor

◆Suction ability up to 9.5   meters and self-priming
◆Dry-run   without damage
◆For   high viscosity or shear sensitive medium
◆No   leaking, no block. No sealing gasket, ball, diaphragm, immersion rotor,   stator and piston etc.
◆Pumping   abrasive slurries, corrosive acids, large solids       and gas-liquid mixture.
◆No   internal leakage. Flow stability, can accurate and repeatable measurement.   Accuracy ±1%
◆No   ancillary equipment, check valves or water flush systems
◆Reversing   operation, particle can safety out from suction or discharge pipe
◆Minimal   maintenance-just change the hose
◆Reliable quality, low using cost

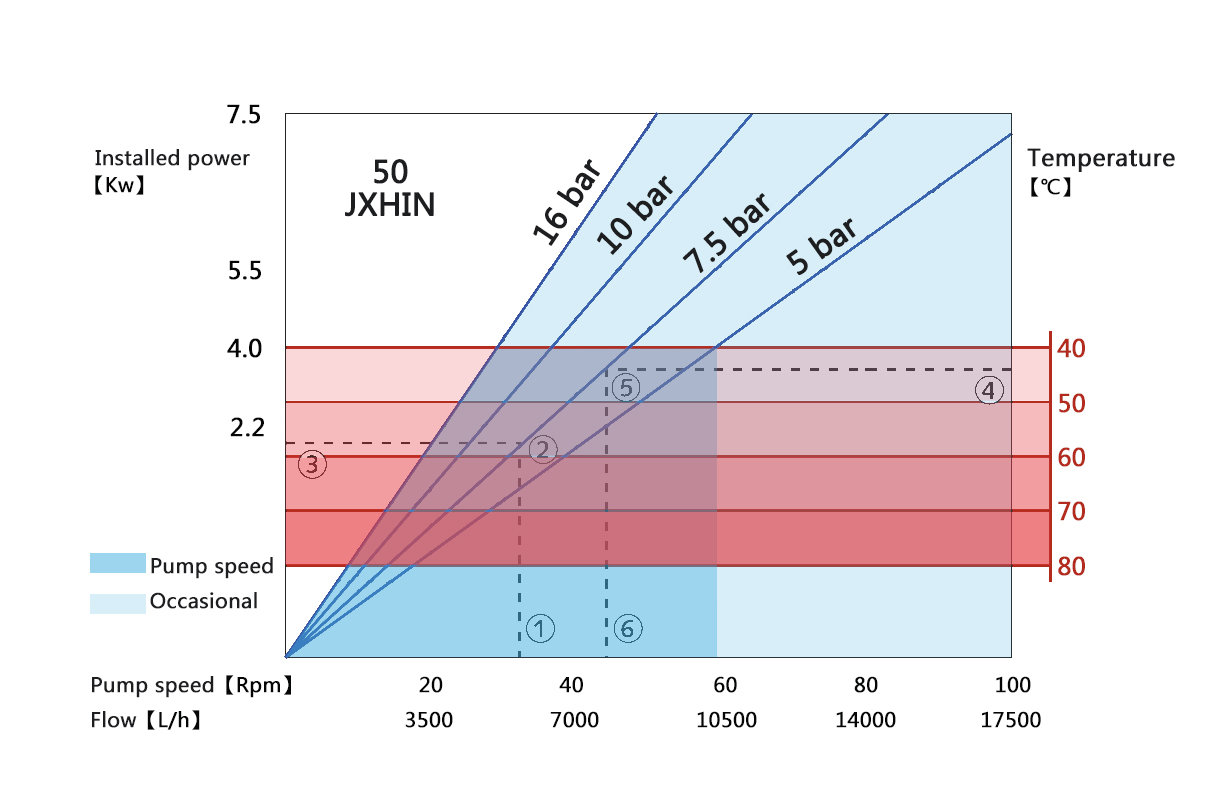

Flow  rate measured with water of 20℃, out   pressure show as following chart

Inlet/outlet

DN40 FLANGE

Motor power

4.0KW

Max flow

2.90 l/min

Max head

160m

Max discharge pressure

16 Bar

Lubricant required

10 L

Max temperature

80℃

Hose options

Chlorosulfonated polyethylene rubber（CSM） Natural   rubber(NR)
  foodgrade hose(F NBR)  nitrile   rubber(NBR)  EPDM

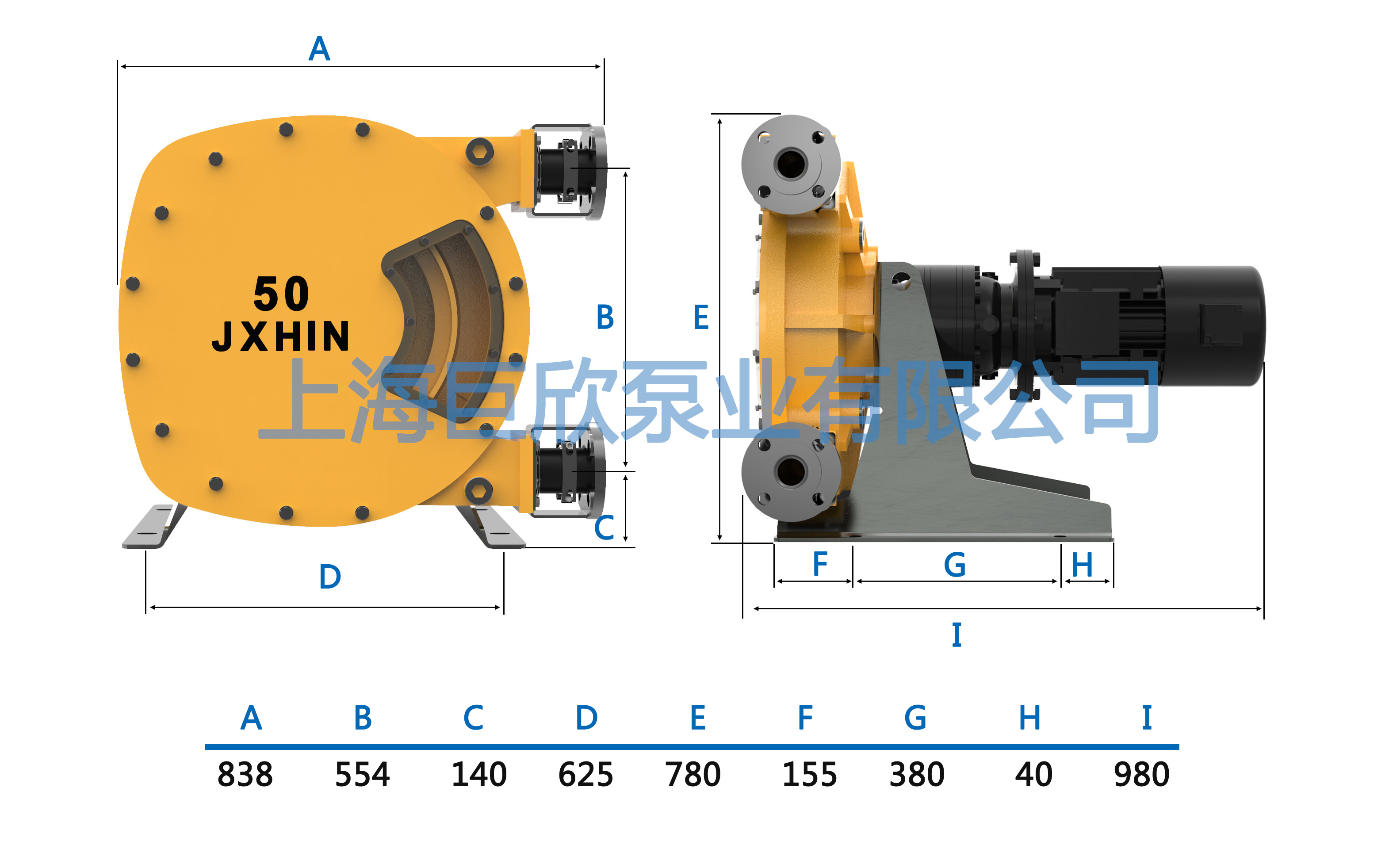

Installation   size (mm)
